DESCRIPTION

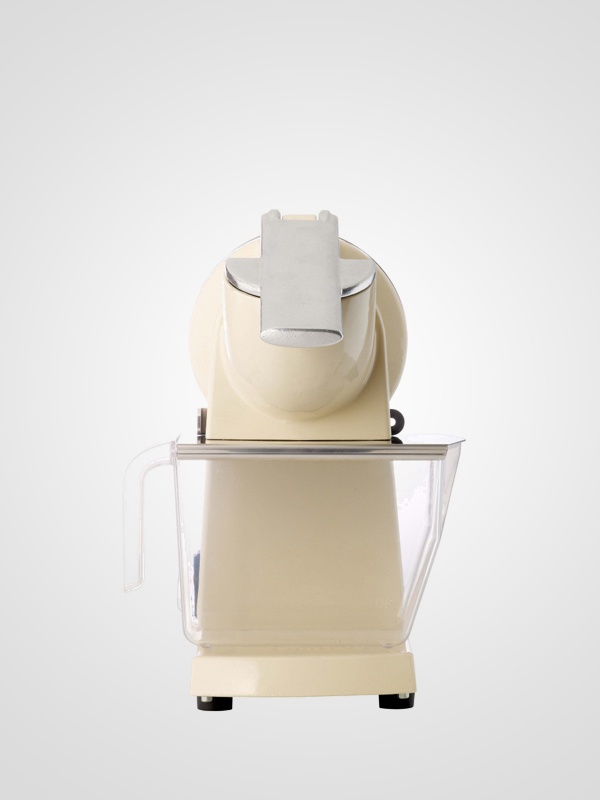

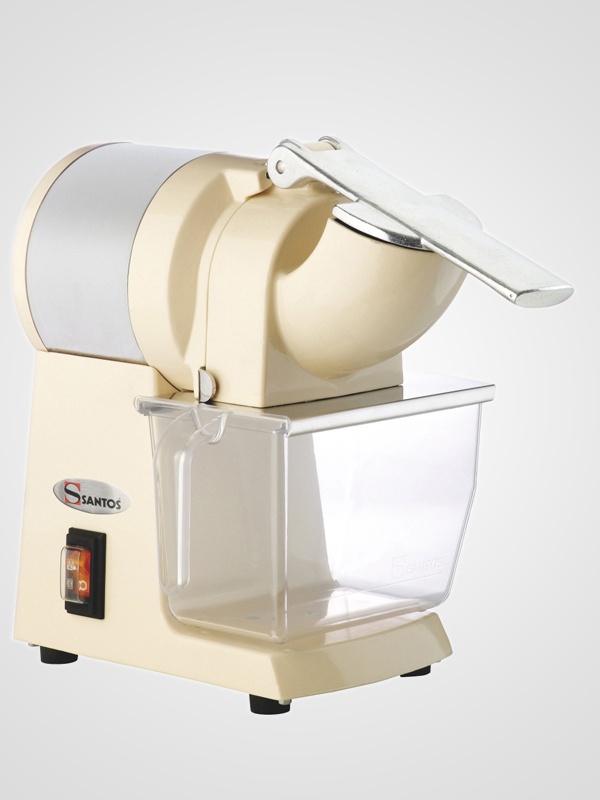

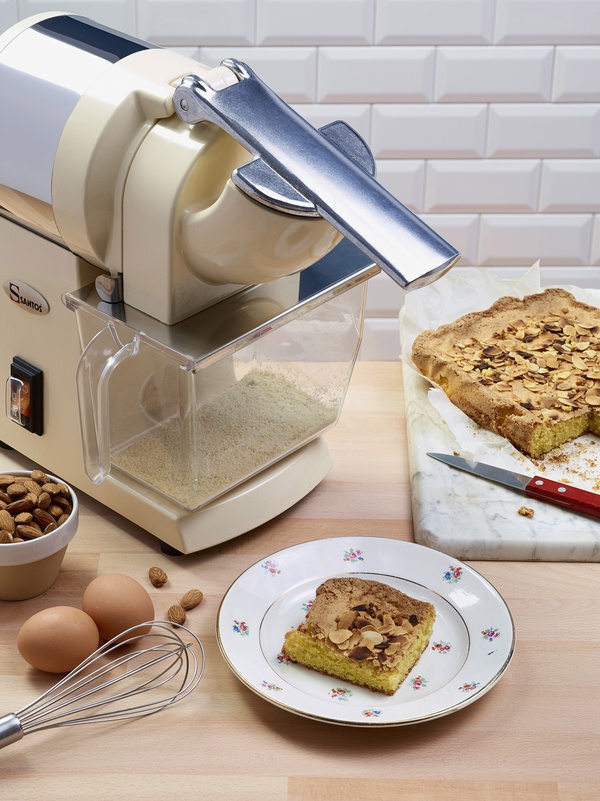

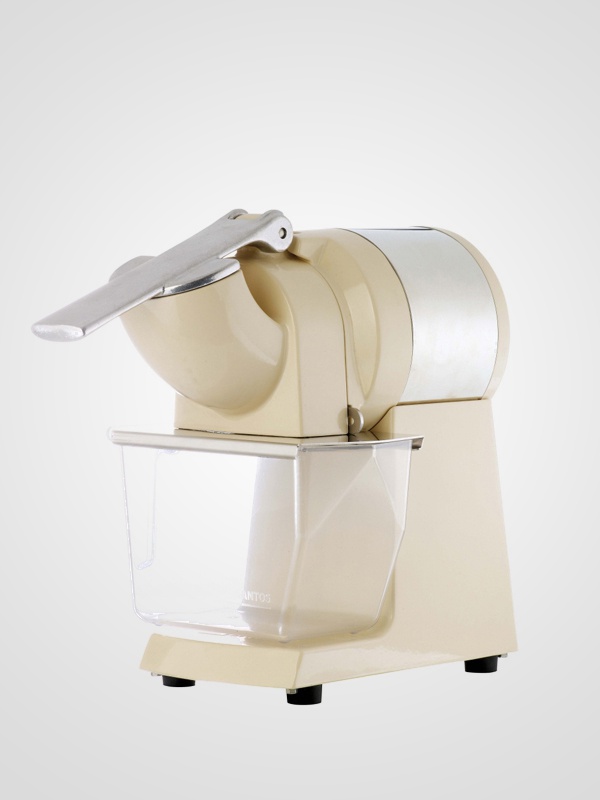

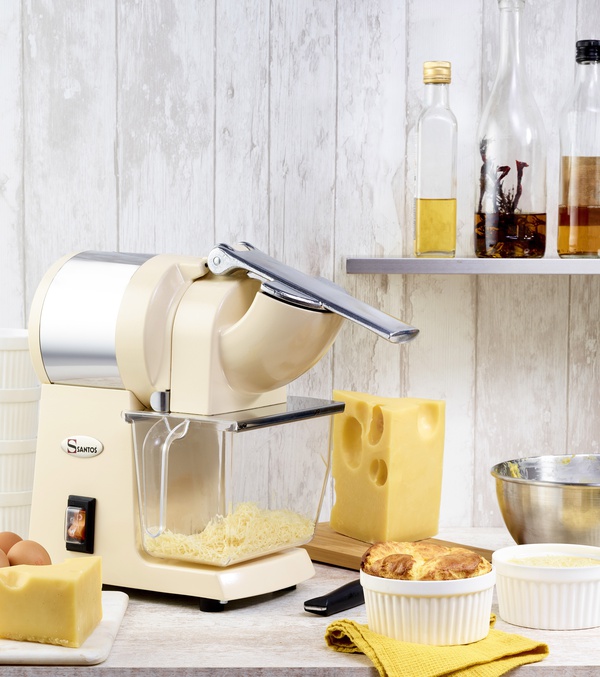

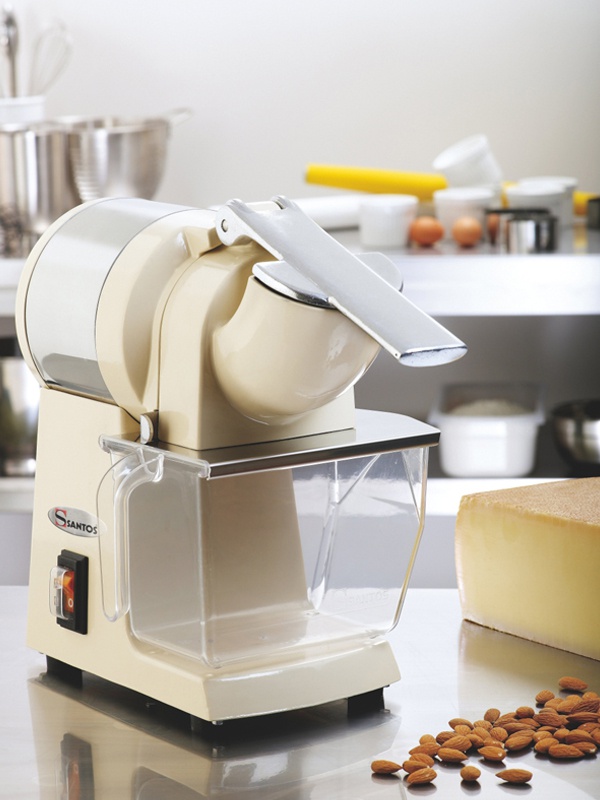

Grater 02

The genuine Santos grater since 1954, dedicated to cheese shops, supermarkets, pizzerias, cake shops...


A wide range of discs is available to grate hard and soft cheese, chocolate, peanuts and dried fruits...

Its new design facilitates cleaning and maintenance (removable housing and disc).

Safety switch: the machine stops when opening the drawer or lever.

Delivered with 1 standard disc with ø 3 mm holes (other discs available on demand).

Average output: 50kg/hour.

COLORS

technical description

Motor

Single phase

100 - 120 V - 50/60 Hz - 650 W

220 - 240 v - 50/60 Hz - 600 W


Speed

1500 rpm (50 Hz)

1800 rpm (60 Hz)


Weight

Net: 14,5 kg (32 lbs)

Packed: 15,6 kg (34 lbs)


Dimensions


Net

D: 420 mm (16,5 ")

W: 250 mm (10")

H: 350 mm (14")


Packed:

D: 455 mm (18")

W: 295 mm (12")

H: 410 mm (16")



Normes

- Versions 02 (220-240V - 50/60Hz) : CE, RoHS.
- Versions  02V1 (100-120V - 50/60Hz) : CE, UL, RoHS.

media library

  • User manual
  • Sales leaflet
