DESCRIPTION

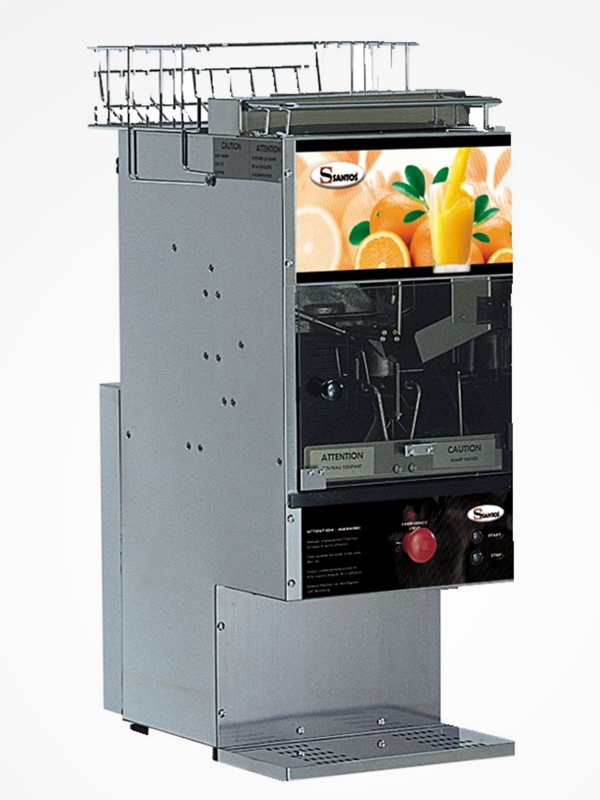

This automatic orange juicer is ideal for juice bars, fast food chains, hotels...


Reliable product all in stainless steel, equipped with a powerful induction motor.

High quality orange juice thanks to the exclusive squeezing system : no contact between the juice and the peel.

Accepts all oranges from 60 to 90 mm diameter.

Easy to clean: water sprayer delivered with the machine, removable knife, squeezer, and ejectors.

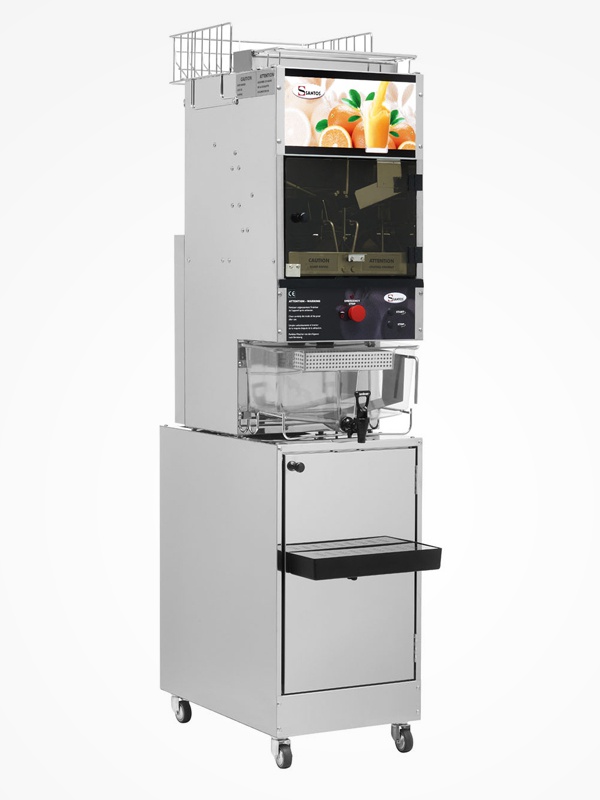

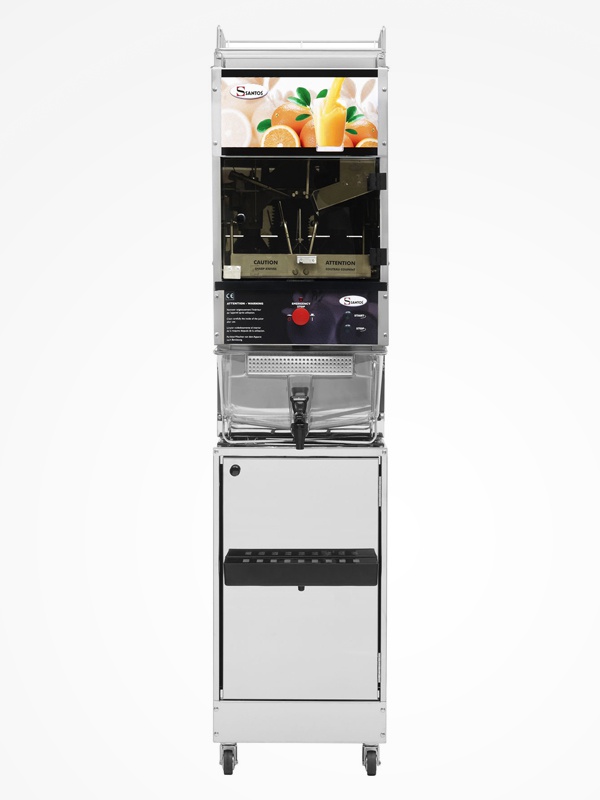

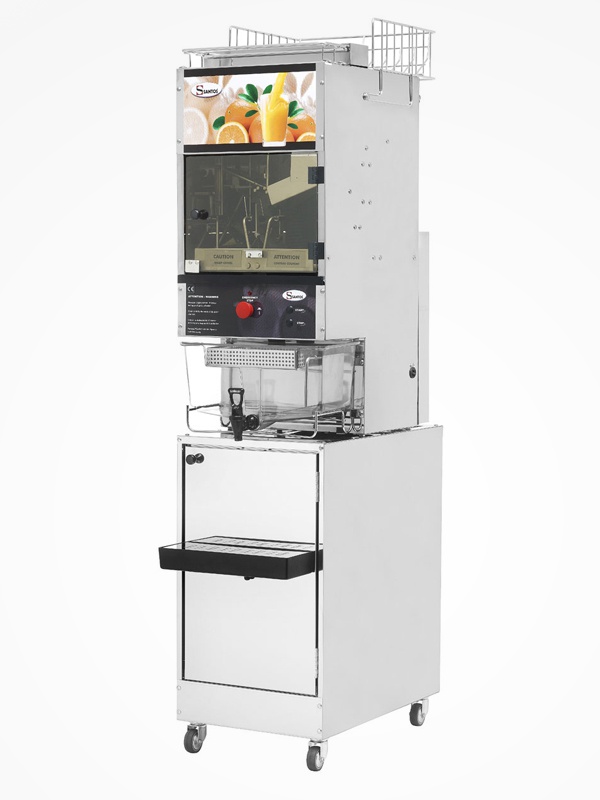

It fits everywhere thanks to its modularity: version with table (32T) or in-counter version (32 Bac).

High output: 100l/ h

COLORS

technical description

Motor

Single phase

100 -120 V - 50/60 Hz - 650  W

220 - 240 V - 50/60 Hz - 600 W



Speed

1500 rpm (50 Hz)

1800 rpm (60 Hz)



Weight

Model 32Bac

Net: 65.45 kg  (144 lbs)

Packed: 98 kg (216 lbs)



Model 32T

Net: 65.5 kg (143 lbs) + 21 kg (46 lbs)

Packed:  73 kg (160 lbs) + 25 kg (55 lbs)













Dimensions



Model 32 Bac

Net

D: 600 mm (24")

W: 410 mm (16")

H: 1026 mm (40")



Packed

D: 680 mm (27")

W: 510 mm (20")

H: 1170 mm (46")



Model 32T

Net

D: 770 mm (30")

W: 410 mm (16")

H: 1810 mm (71")



Packed



D: 670 mm (26") + 845 mm (33")

W: 520 mm (20,5") + 540 mm (21")

H: 1170 mm (46") + 730 mm (29")



CE
RoHs

Normes

- Version 32 : CE, RoHS.

- Version 32V1 : CE, RoHS.
